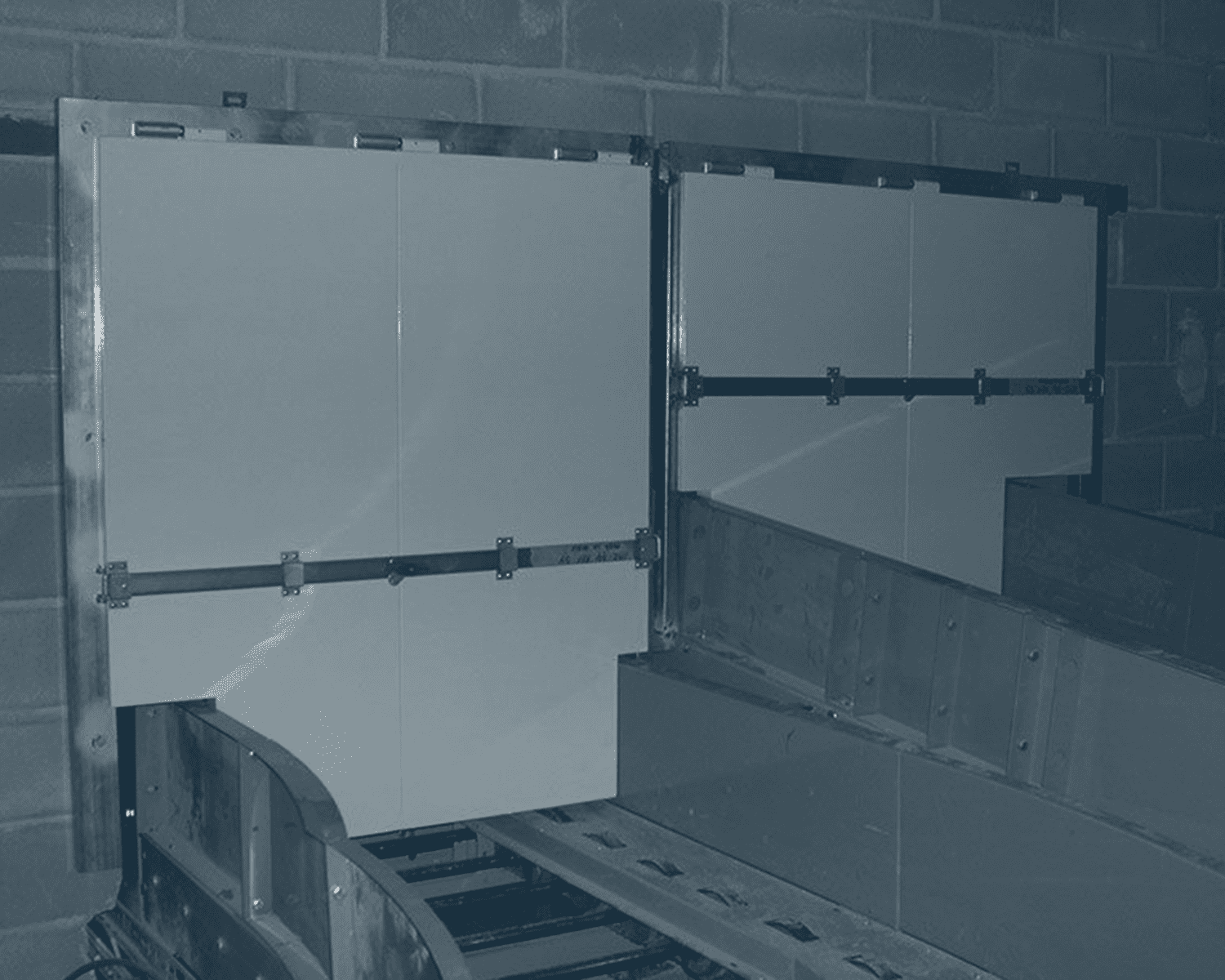

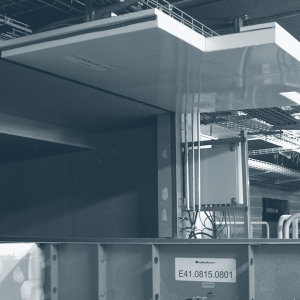

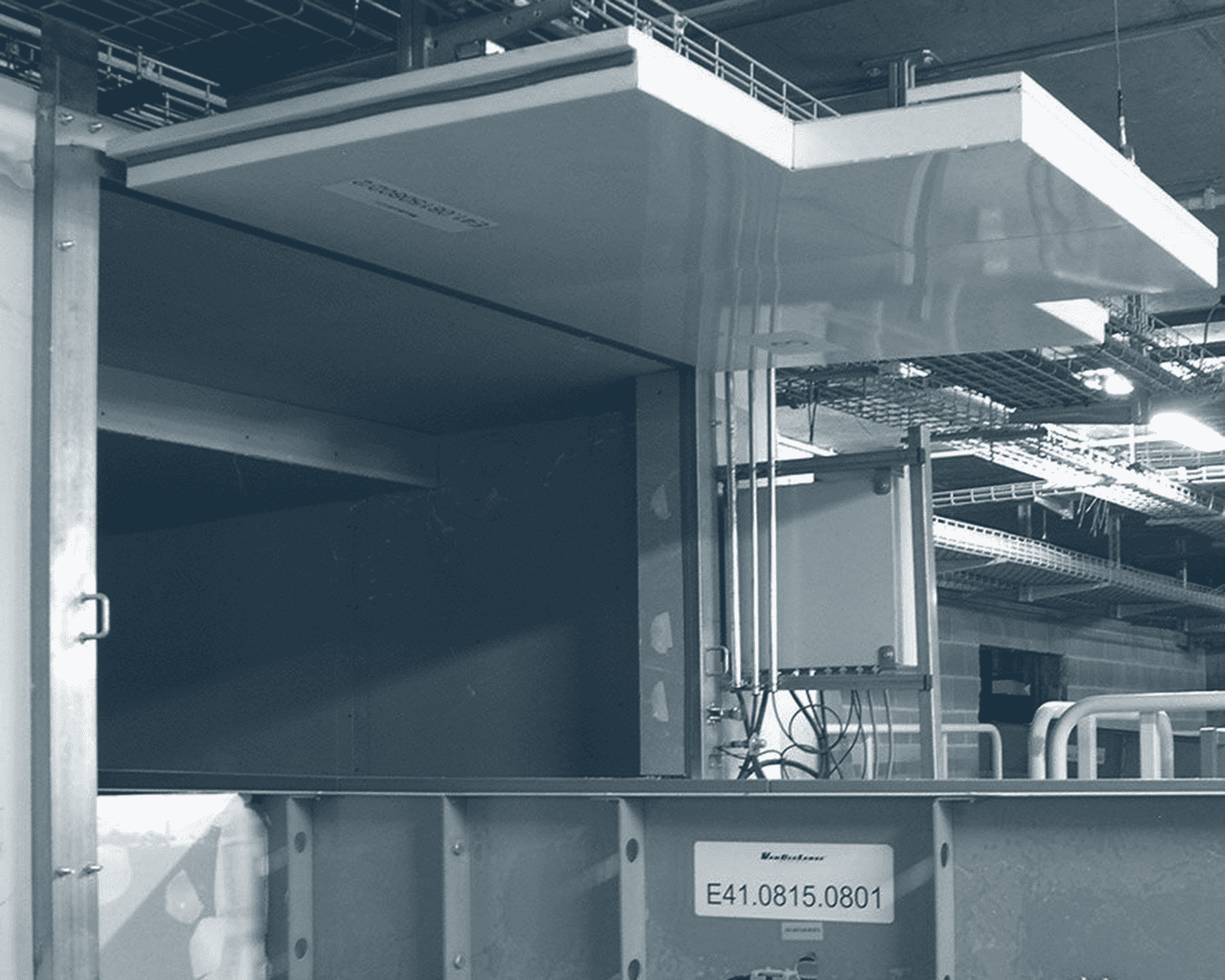

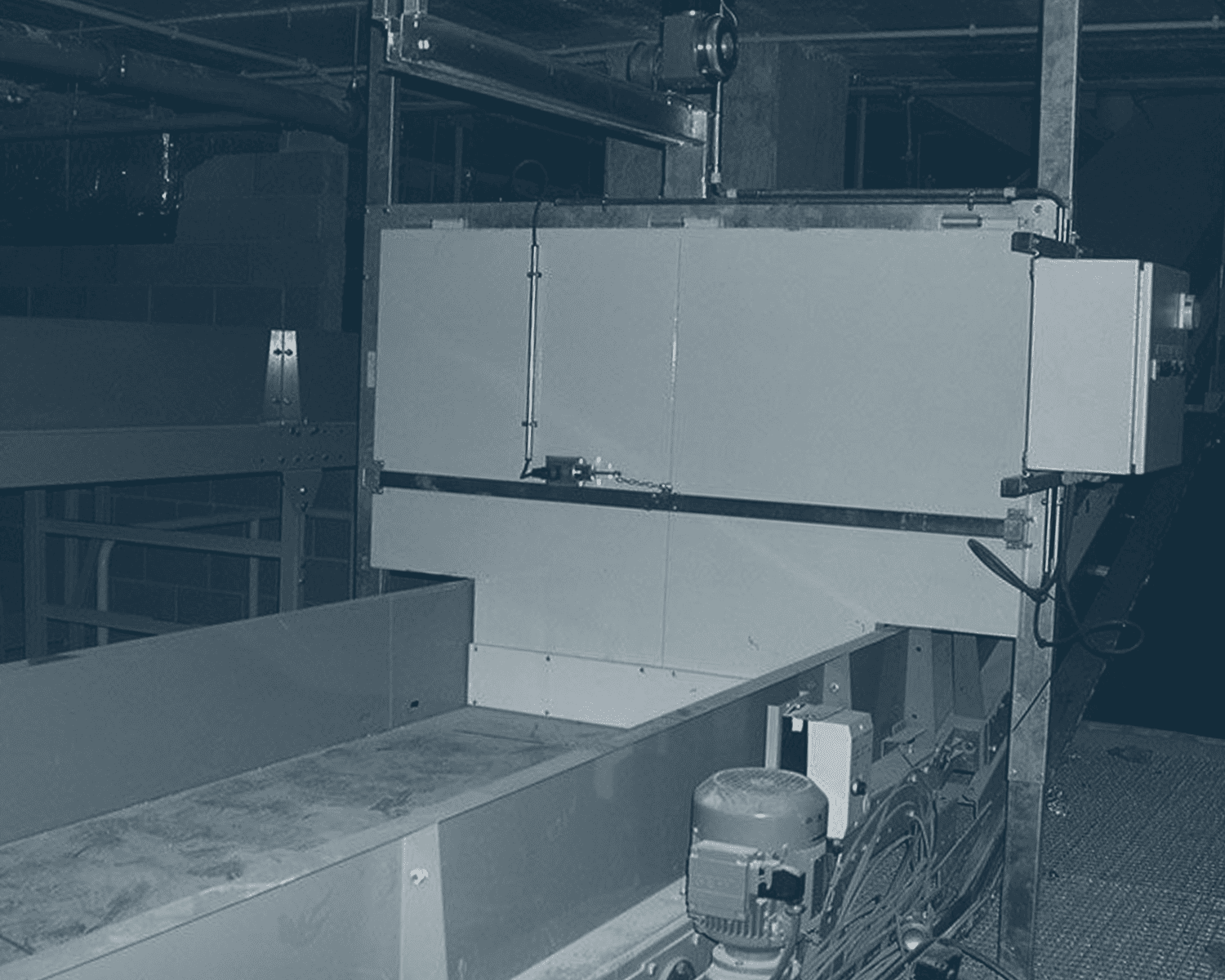

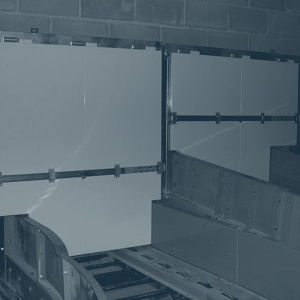

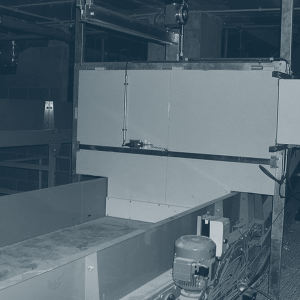

Vertical Hinged
1-leaf EI2 90/ vertical hinged metal fire door. Tested according to UNE EN 1634-1 and classified according to EN 13501-2. Composed of 1.2 mm. steel sheet leaf and fireproof filling according to test. Galvanised tubular frame and solid ball bearing hinges with no visible welds. Lock with anchoring on both sides of the leaf with electric unlocking piston. NL7 electric mechanism with support, control box, photocell and limit switch. Manufactured and tested for locking on conveyors with leaf recesses.
Downloads

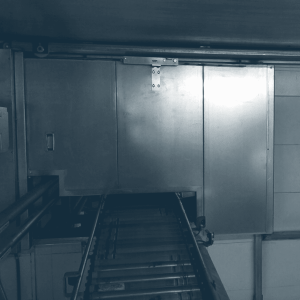

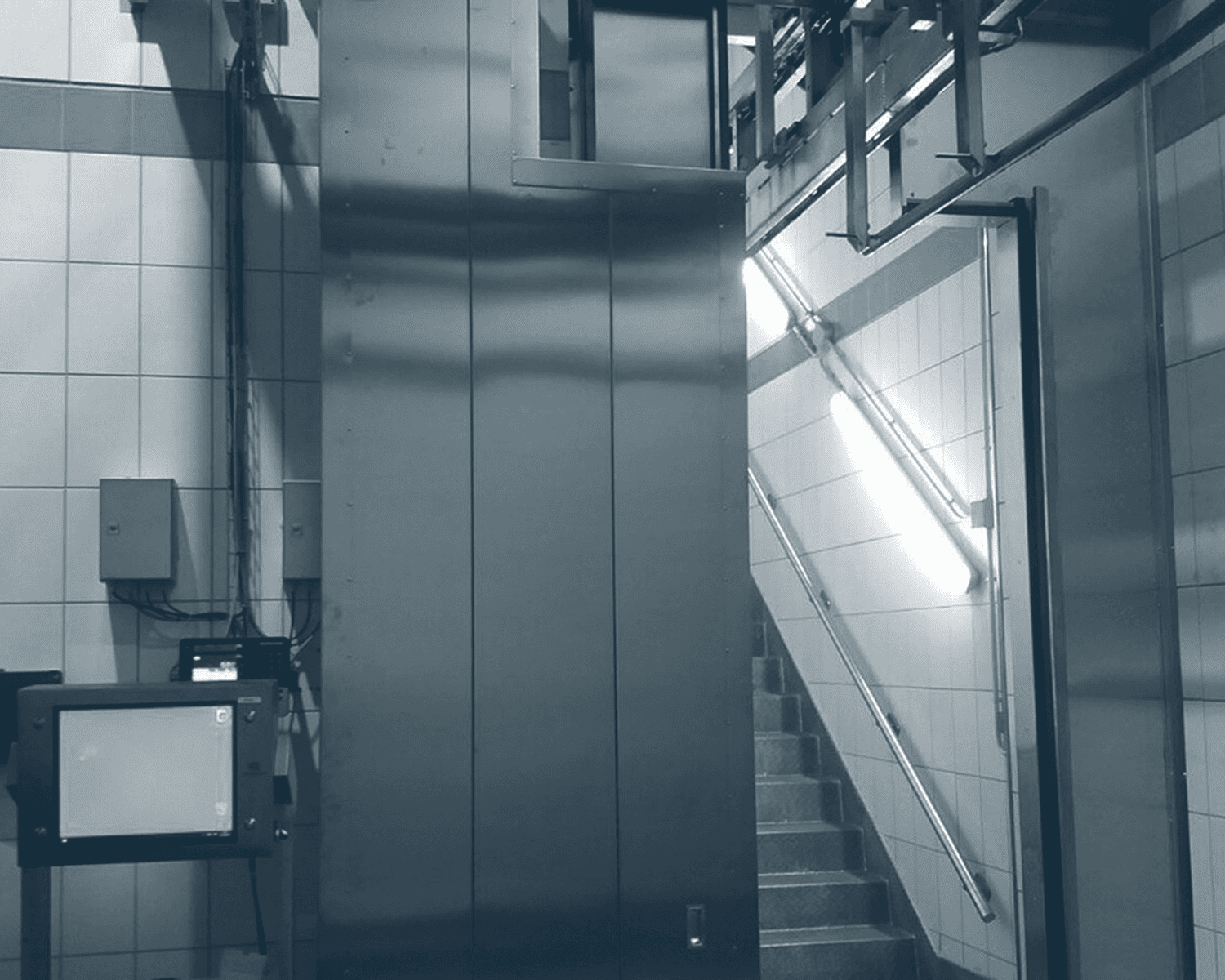

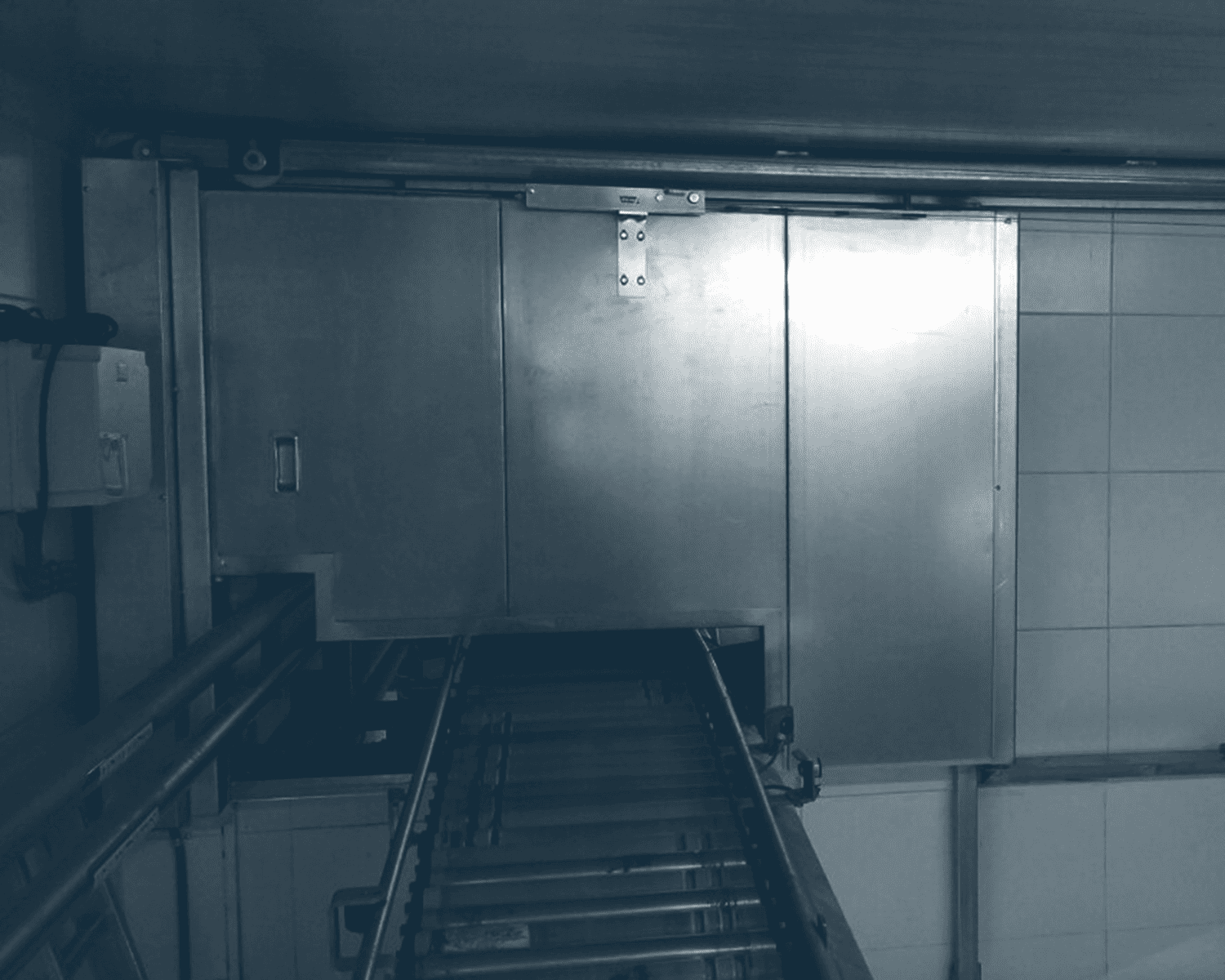

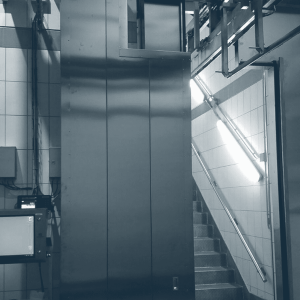

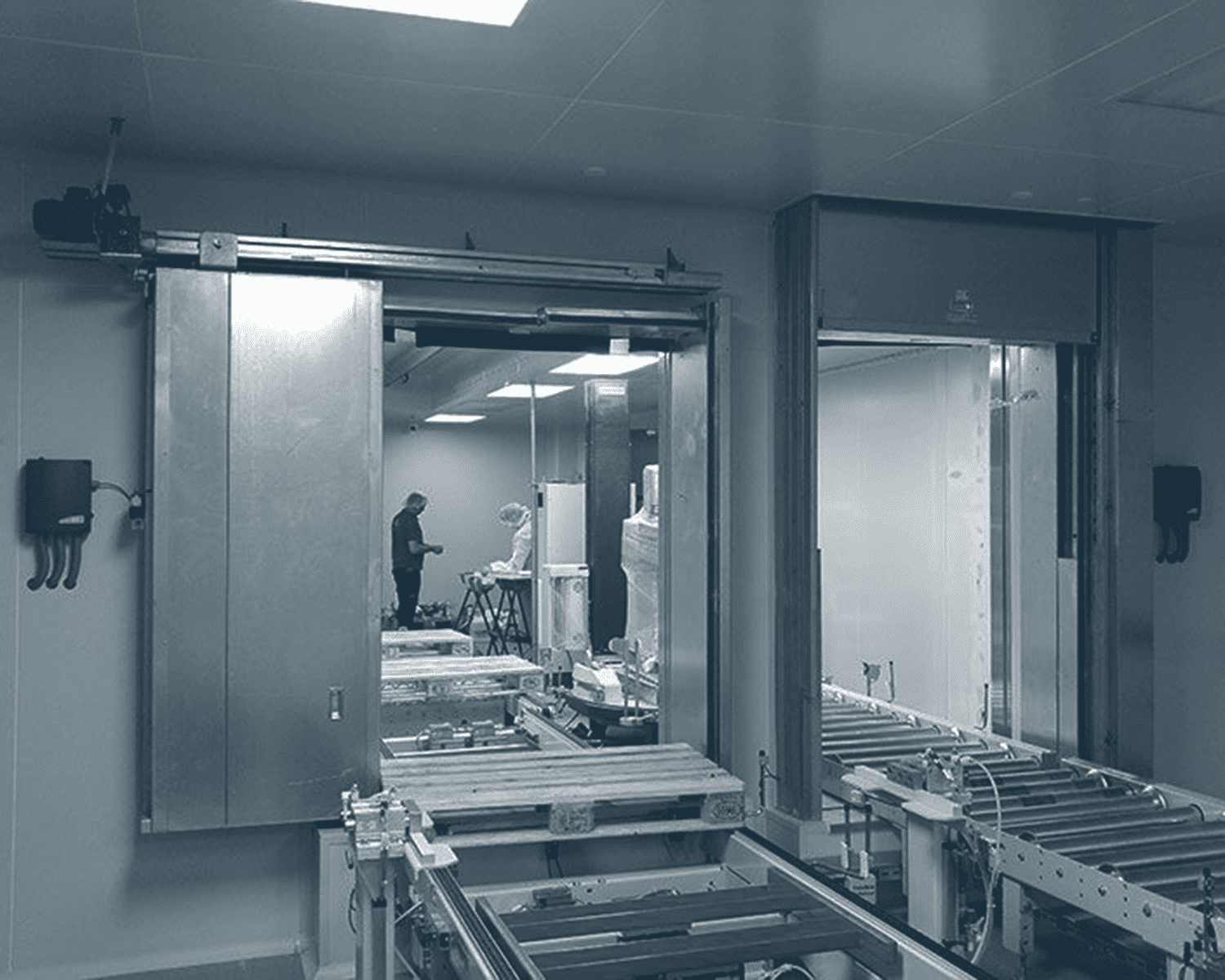

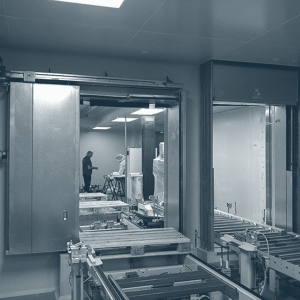

Sliding
Tested according to the UNE-EN 1634-1 Standard and classified according to the UNE EN 13501-2 Standard as fire resistant EI260, 90 and 120. The leaf is made up of a system of its own panels manufactured in 1.2 mm galvanised sheet metal. Adaptation of specific safety/detection systems for conveyor installations.
Downloads

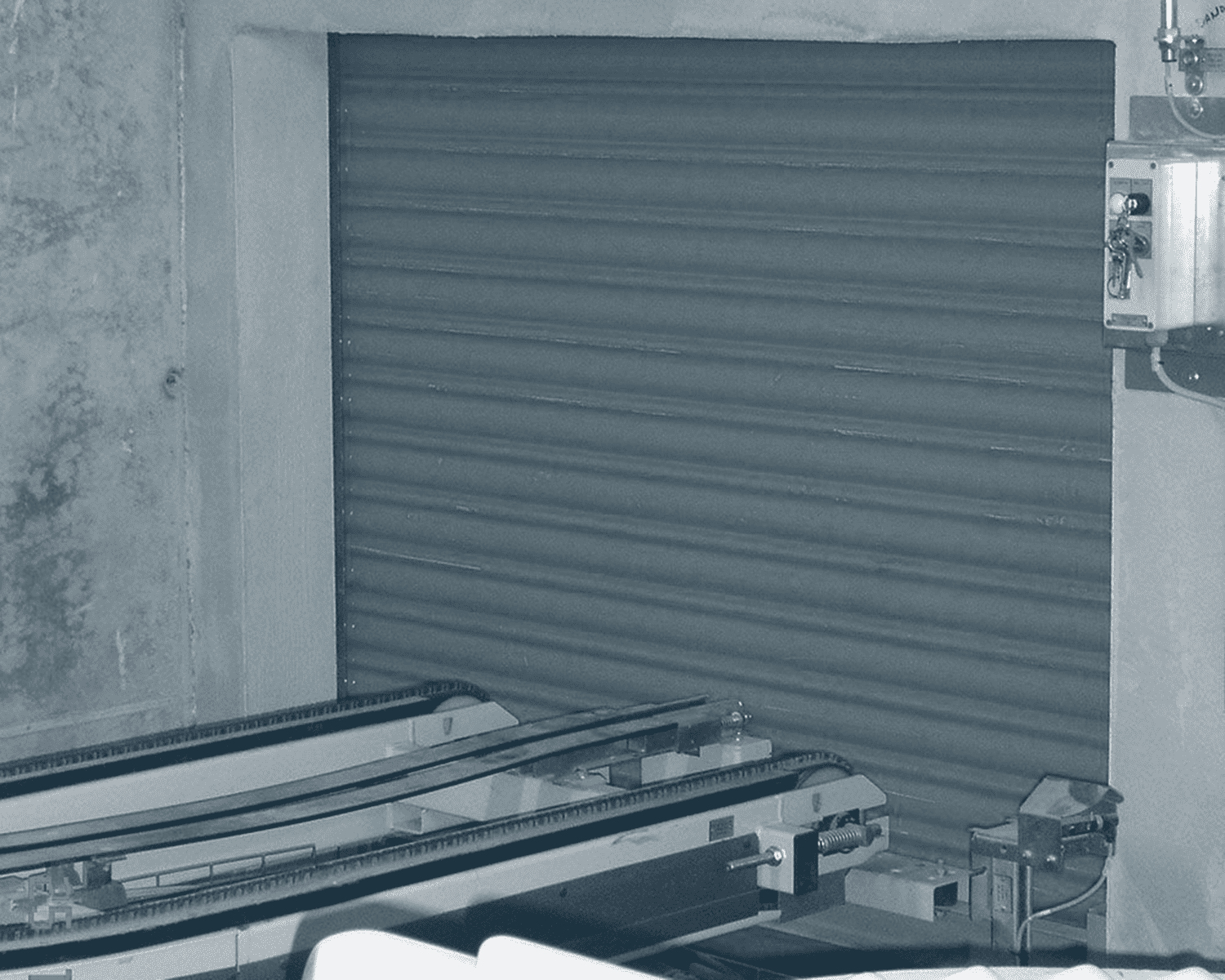

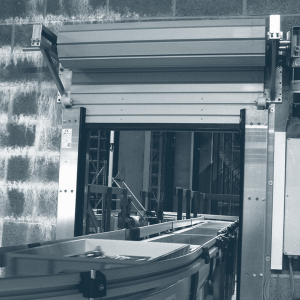

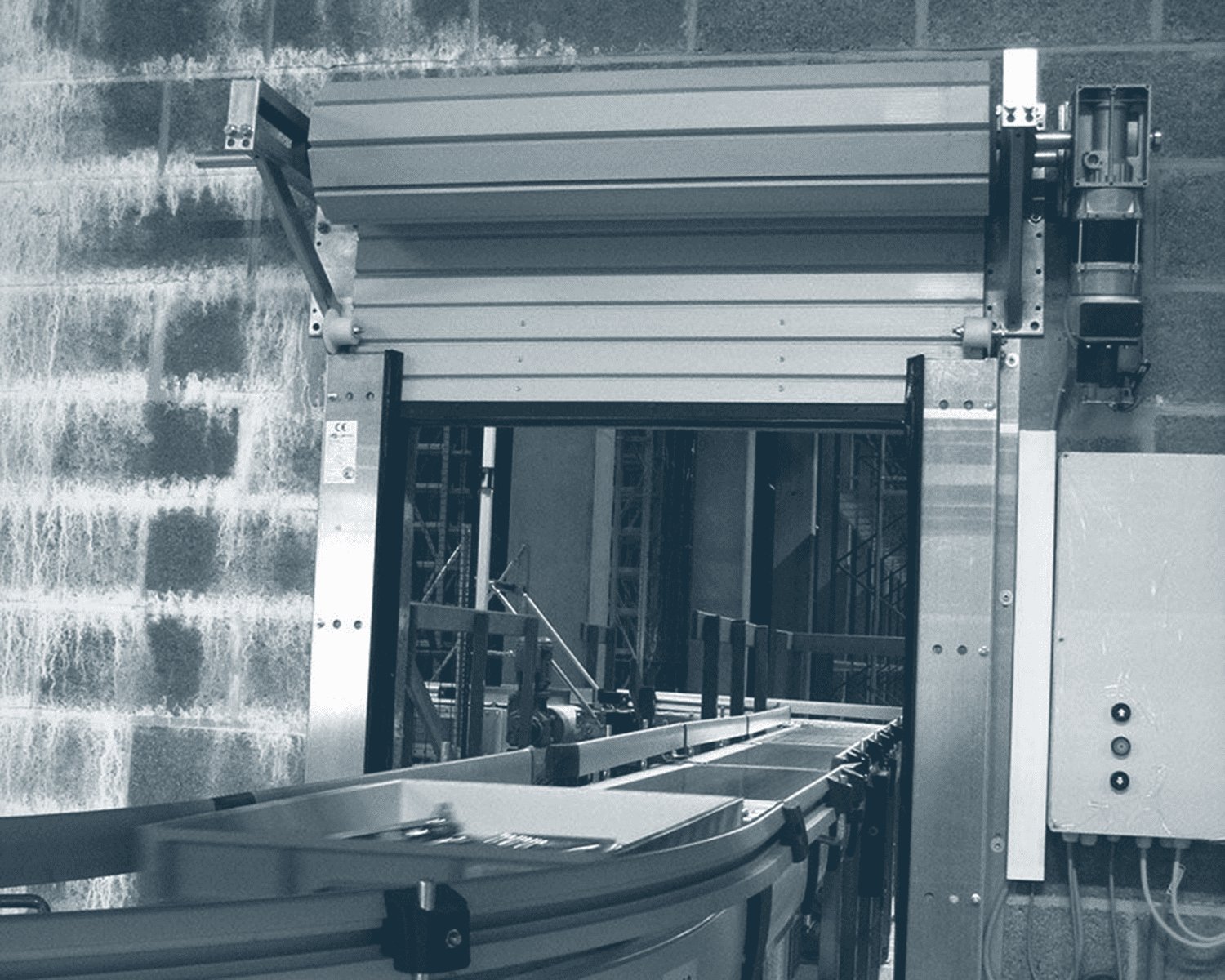

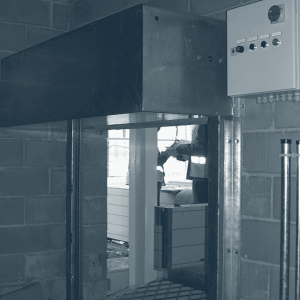

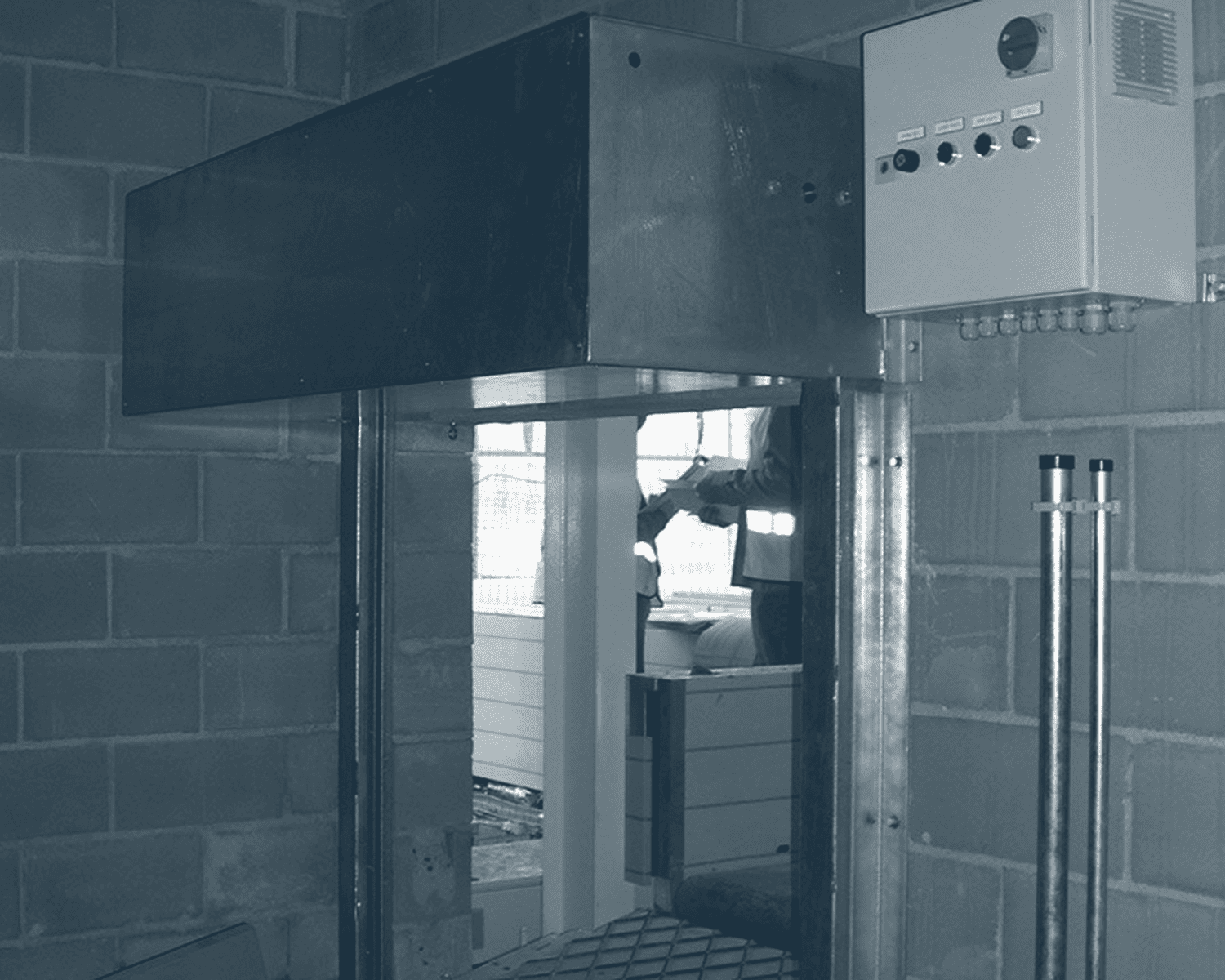

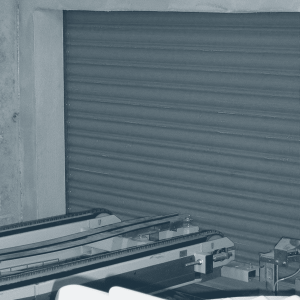

Roller blind
Ei2-60 1-leaf fireproof metal roll-up door, type-approved in accordance with UNE EN 1634-1 Standard with 60 minutes fire resistance. Composed of PVC slats on both sides, 1 mm thick, fireproof filling according to test.
U-shaped metal side guides with wall anchoring system. Metal side gussets with bearings to hold the shaft dimensioned according to door dimensions and weight. Motorisation adapted to the fire operation. Adaptation of specific safety/detection systems for conveyor installations.
Downloads

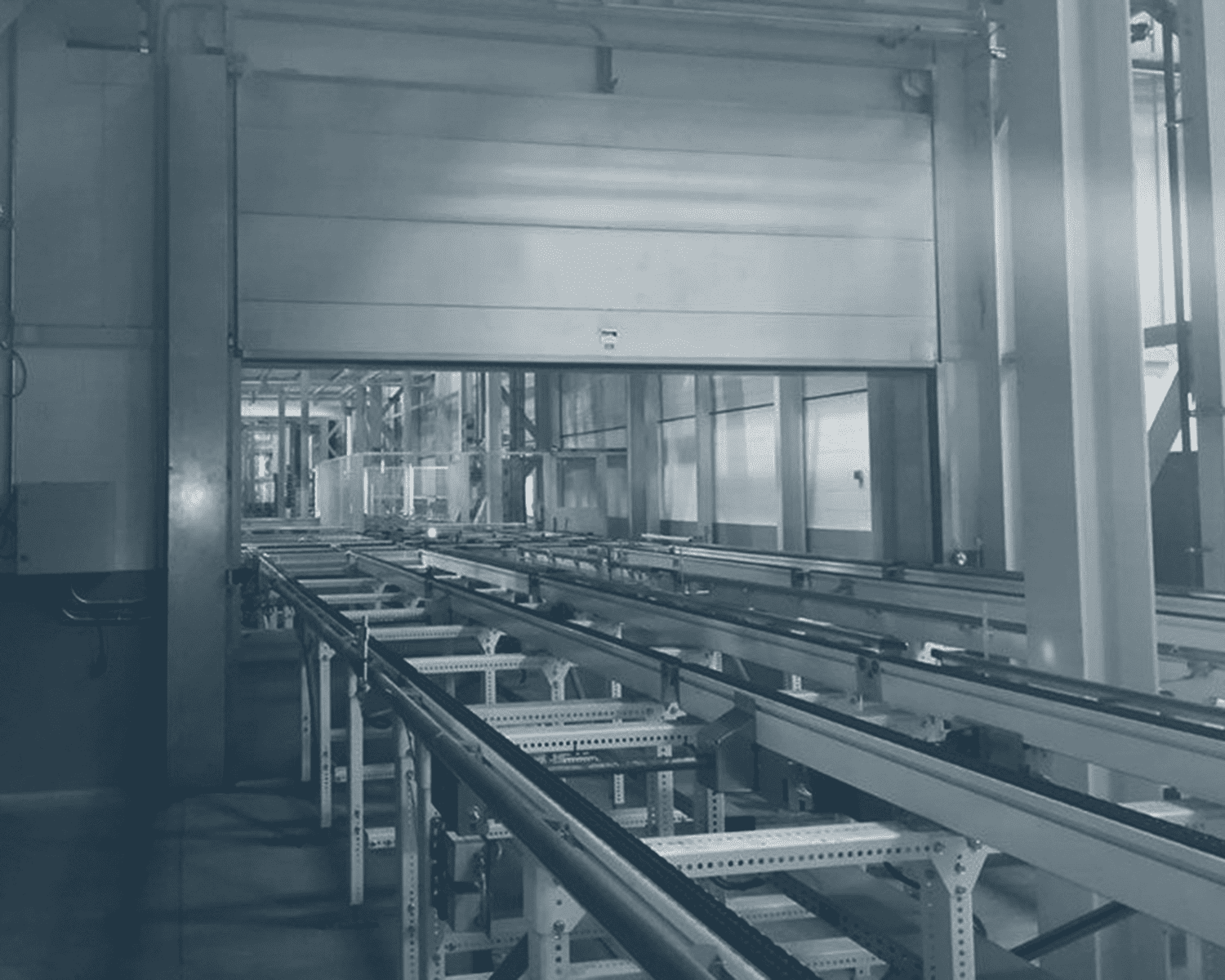

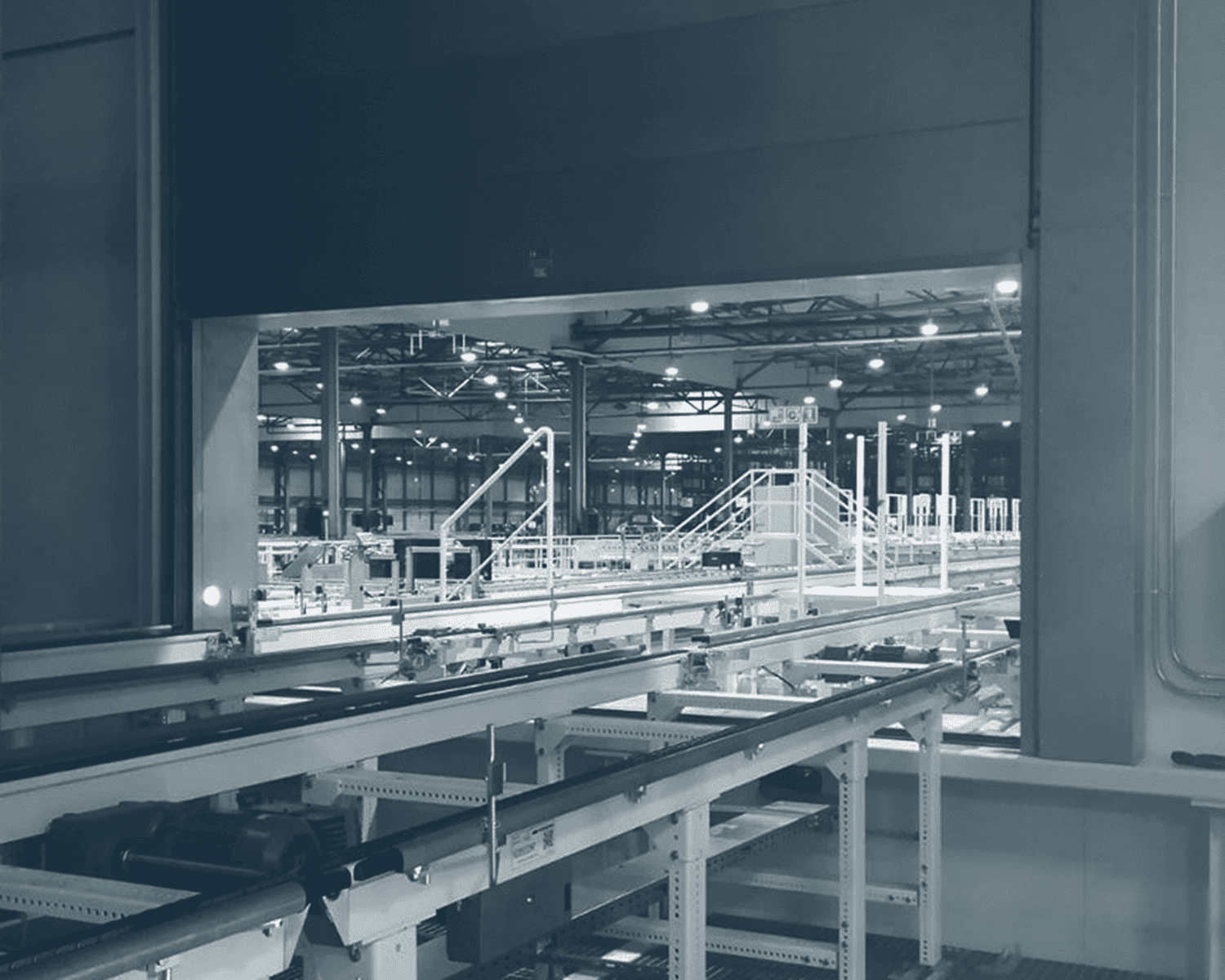

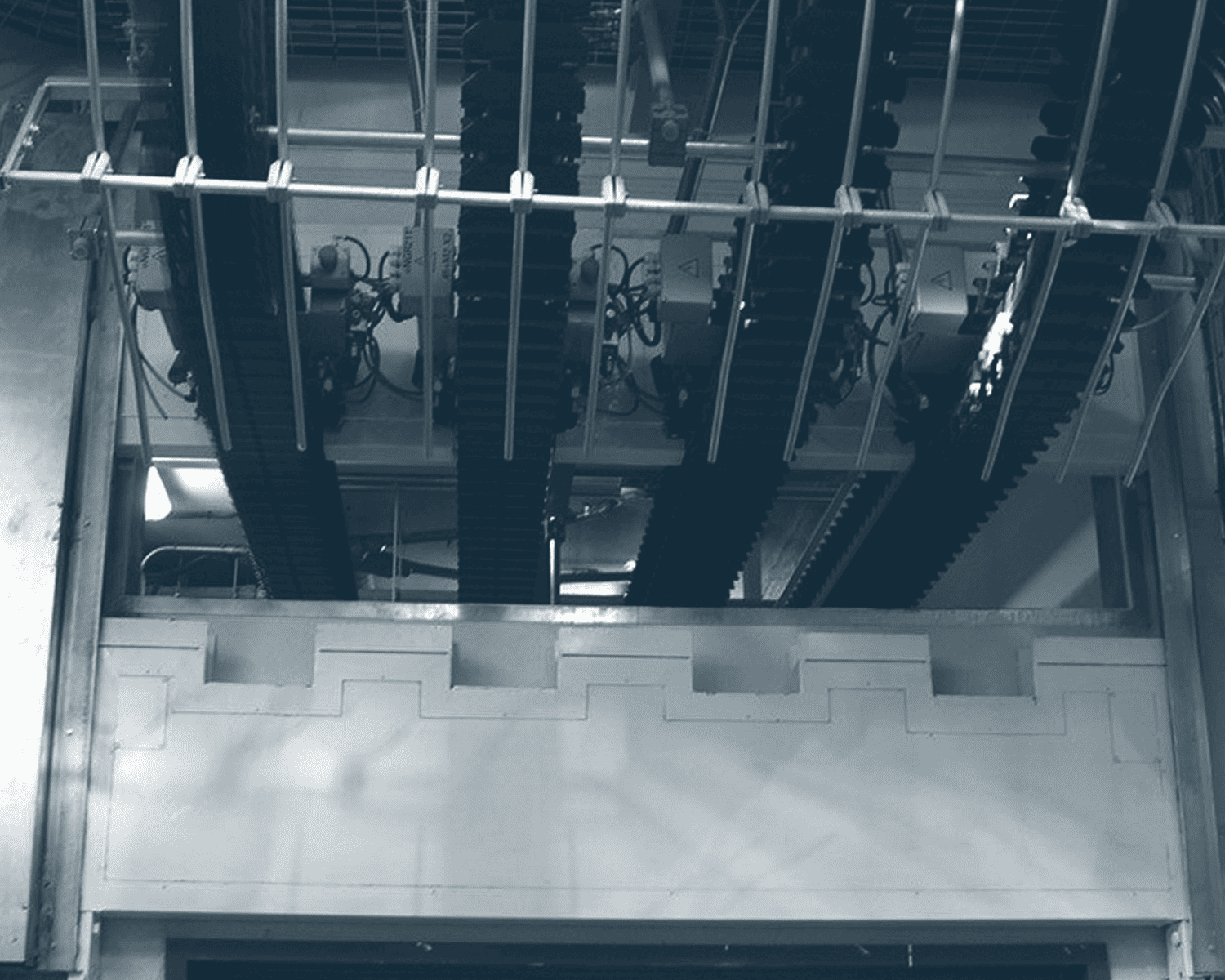

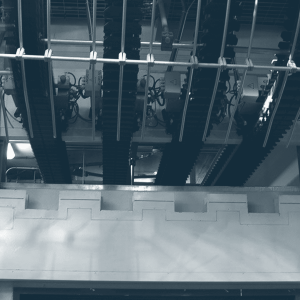

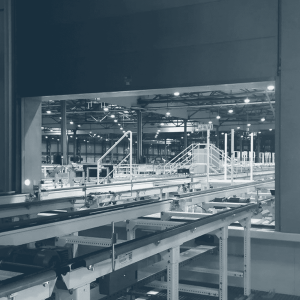

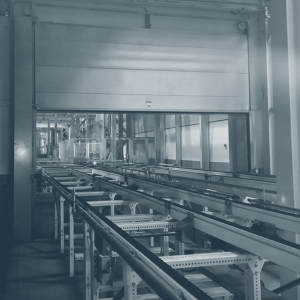

Guillotine
Fireproof metal guillotine door tested according to the UNE-EN 1634-1 Standard and classified according to the UNE EN 13501-2 Standard as fire resistant EI260-90 and 120. Composed of a 1.2 mm thick galvanised sheet metal door leaf. Lateral guides on which the bearings slide with anti-drop system of the leaf. Adaptation of specific safety/detection systems for conveyor installations.
