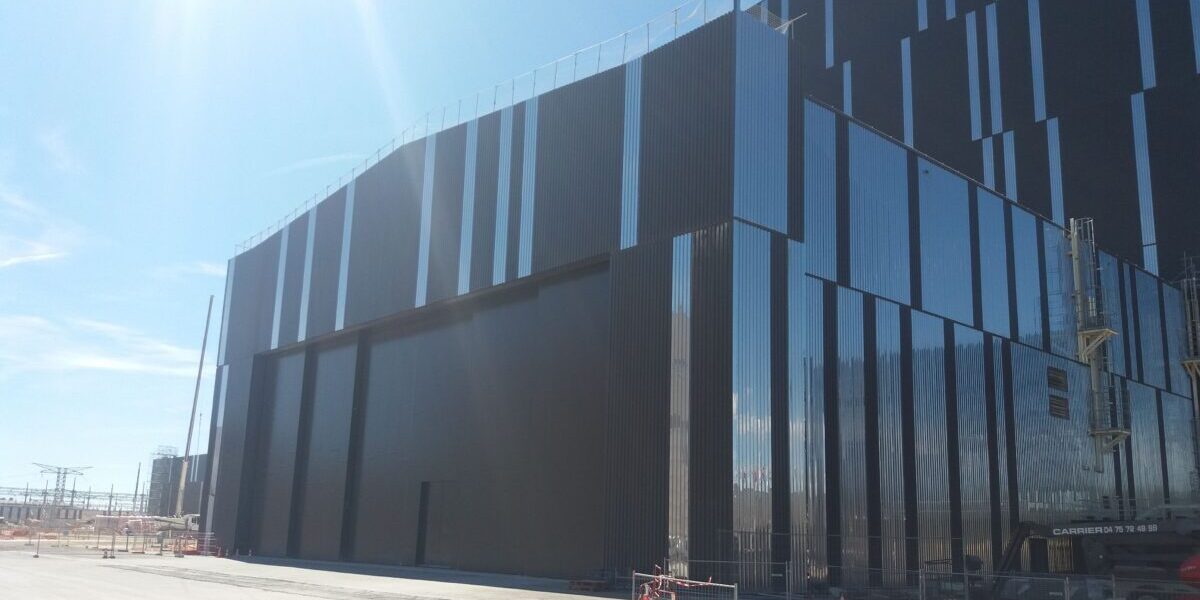

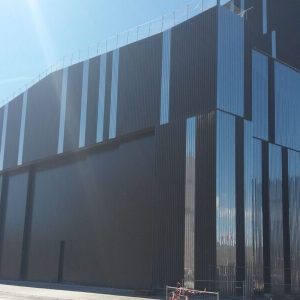

Large Dimensions
Industrial use in large access installations. Ideal for aeronautical environments, nuclear facilities and handling large volumes. Designs and motorisations designed individually for each project and for the required performance: wind load, permeability, fire resistance, etc.
Downloads
Folding Booklet Panels
Sliding metal bookcase door in several vertical leaves, always in an even number, and no wider than 850 mm. Welded tubular skeleton with vertical ribbed sheet metal exterior lining with tubular reinforcements on the inside depending on the height of the leaves. Motorisation by means of chain mechanism, control box, key and photocell. Possibility of different exterior and interior linings. The door can be made manual and closed in one direction only and can incorporate a passage door inside the leaf.
Downloads
Rigid
Metal sliding door with welded galvanised tubular structure and dimensioned according to size and weight. Straight upper guide with two ball bearings connected to the leaf by means of a height adjustment system. Different guiding systems according to design and customer requirements. Locking receiver with wall anchoring system, upper end stop and locking pins or lock.
Motorisation by means of electric rack and pinion or chain mechanism, manoeuvre box, key, photoelectric detection cell and limit switches. It can be finished with different types of lining and the inclusion of pedestrian doors with and without lower crossbar.
Downloads
Telescopic
Industrial use. Metallic sliding door in 2 or more leaves composed by leaves with galvanised tubular structure welded and dimensioned according to measurements and weight.
Straight upper guide of 70x60x3 (or higher depending on weight) with two ball bearings attached to the leaf by means of a height adjustment system. System of bearings fixed to the floor on both sides of the opening that run along the lower “U” of the leaf that fix the leaf without the need for a lower guide. Locking receiver with wall anchoring system, upper end stop and locking pins or lock.
Automation by means of electric rack and pinion or chain mechanism, control box, key, photoelectric detection cell and limit switches. Option of incorporating a passage gate incorporated into the sliding leaf with lock, key or panic bar.
