1 Sheet
Tested according to UNE-EN 1634-1 Standard and classified according to UNE EN 13501-2 Standard as EI260, 90 and 120 fire resistant. The sheet is made up of a system of own panels made of 1.2 mm galvanized sheet metal. Available with access gate with and without lower crossbar.
Standard activation by fuse or electromagnet (24v.). Motorization available. Available sizes greater than 5000 mm x 5000 mm.
Downloads
CF CR 2.3 Ficha Técnica Corredera 1 Hoja EI90 English (CE)
CF CR 6.3 Ficha Técnica Corredera 1 Hoja EI120 con portillón CT English (CE)
CF CR 13.2 Ficha Técnica Corredera 1 Hoja EI60 con portillón ST (CE) EN
CF CR 5.1 Ficha Técnica Corredera 1 Hoja EI90 con portillón CT (CE) EN
CF CR 4.1 Ficha Técnica Corredera 1 Hoja EI60 con portillón CT (CE) (1) EN
CF CR 2.3 Ficha Técnica Corredera 1 Hoja EI90 (CE) EN
CF CR 3.2 Ficha Técnica Corredera 1 Hoja EI120 English (CE)
CF CR 1.2 Ficha Técnica Corredera 1 Hoja EI60 English (CE)

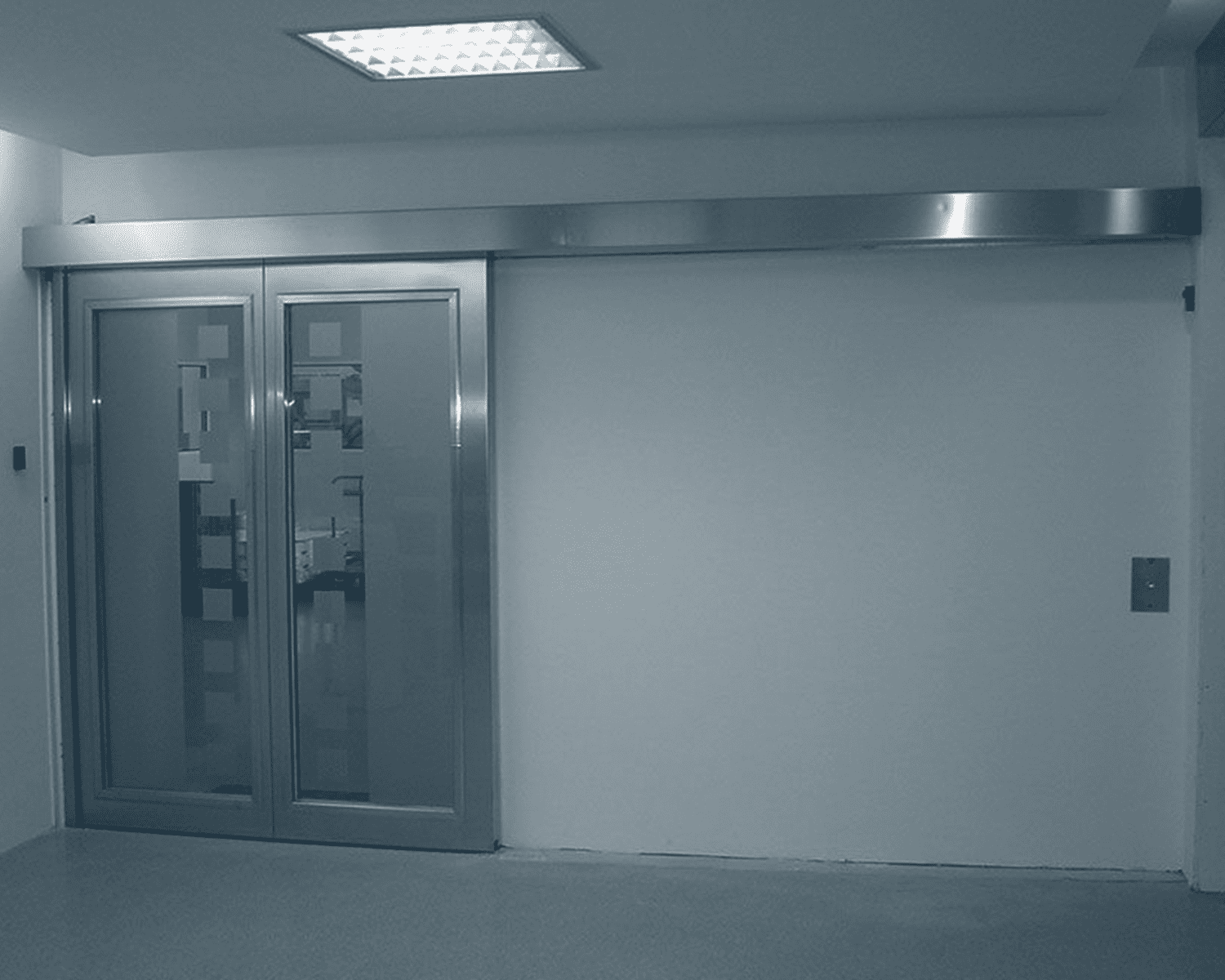

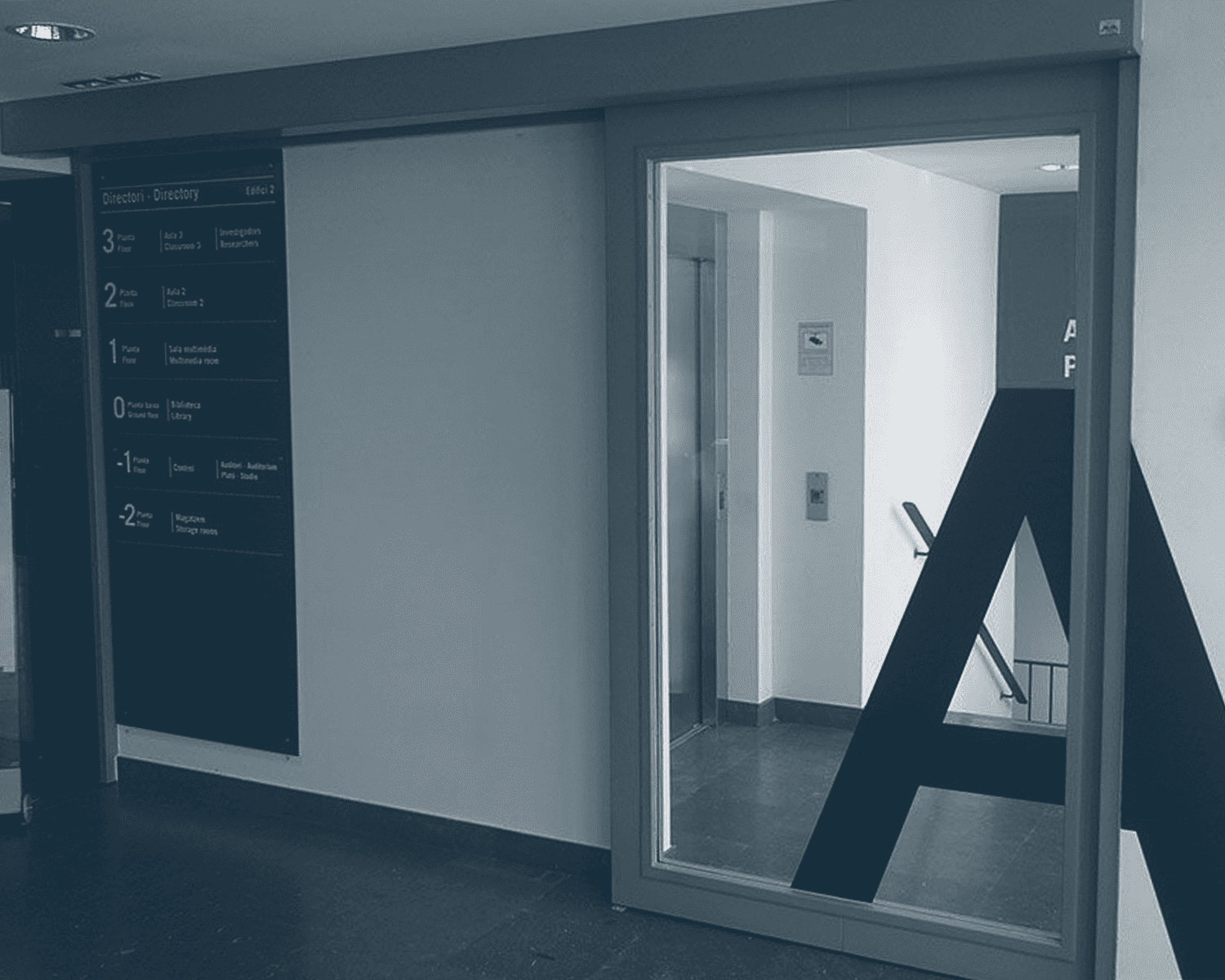

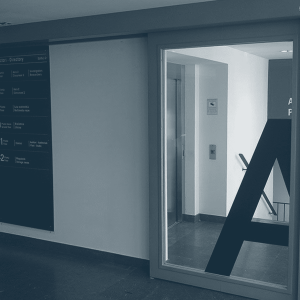

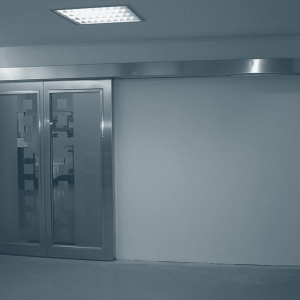

Glazed automatic
Tested according to UNE-EN 1634-1 Standard and classified according to UNE EN 13501-2 Standard as EI260 fire resistant. Composed of a FV-300/1 mechanism that includes a six-position digital function selector, two infrared radars double-acting assets for door opening and safety, a set of safety photocells, an emergency anti-panic battery for automatic door closing in the event of a power failure. Includes Alfa Torres profiles, with special profiles, aluminum cover, and Pyrobel EI-60 glass panes, for glazing the leaves.
Downloads
2 Leaves Central Closure
Tested according to UNE-EN 1634-1 Standard and classified according to UNE EN 13501-2 Standard as EI260, 90 and 120 fire resistant. The sheet is made up of a system of own panels made of 1.2 mm galvanized sheet metal. Available with access gate. Standard activation by fuse or electromagnet (24v.). Motorization available. Available sizes greater than 5000 mm x 5000 mm.
Downloads
CF CR 7.1 Ficha Técnica Corredera 2 Hojas EI60 cierre central (CE) EN
CF CR 8.1 Ficha Técnica Corredera 2 Hojas EI90 cierre central (CE) EN
CF CR 9.1 Ficha Técnica Corredera 2 Hojas EI120 cierre central (CE)-ENG
CF CR 10.1 Ficha Técnica Corredera 2 Hojas EI60 cierre central con portillón CT (CE) EN
CF CR 11.1 Ficha Técnica Corredera 2 Hojas EI90 cierre central con portillón CT (CE) EN
CF CR 12.1 Ficha Técnica Corredera 2 Hojas EI120 cierre central con portillón CT English (CE)
CF CR 14.1 Ficha Técnica Corredera 2 Hojas EI60 cierre central con portillón ST (CE) (1) EN
Telescopic
Tested according to the UNE-EN 1634-1 Standard and classified according to the UNE EN 13501-2 Standard as resistant to fire EI260, 90, 120 and 180. The sheet is made up of a system of own panels made of 1.2 mm galvanized sheet. Standard activation by fuse or electromagnet (24v.). Motorization available. Available sizes greater than 4000 mm x 4000 mm.
Downloads
CF CR 15.0 Ficha Técnica Corredera Telescópica 2 Hoja EI60 (CE) EN
CF CR 16.0 Ficha Técnica Corredera Telescópica 2 Hoja EI90 (CE) EN
CF CR 17.0 Ficha Técnica Corredera Telescópica 2 Hoja EI120 (CE) EN
